Vertical Catheter Braiding Machine

Vertical Catheter Braiding Machine

Basic Information

  • Product Name: KBL-90-16-1

  • Dimensions: 1050mm* 610mm* 1822mm (Length * Width* Height)

  • Weight: 300KG

Process Parameters

  • Braiding Material: Stainless steel wire, Nitinol wire, Fiber wire, etc.

  • Material Range: Round wire 0.01-0.2mm, Flat wire 0.01*0.01-0.01*0.85mm

  • Braiding Outer Diameter: Covering 0.5-12.0mm (core rod, catheter wrapping Braiding)

  • Braiding Density: 0-300PPI adjustable

  • Braiding Structure: 1x1 (Number of machine spindles / 2), 1x2, 2x2

Vertical Catheter Braiding Machine Series Overview

The Vertical Catheter Braiding Machine Series is primarily designed for the medical industry, ultra-fine wire bundle industry, and engineering research. The machine is composed of the following components:

  • Braiding Host

  • Traction Mechanism

  • Lubrication System

  • Electrical Control System

The entire machine body is driven by a servo motor and features a human-machine interaction interface.

Key Applications

The braiding machines in this series are utilized for a wide range of applications, including:

  • Braiding for various types of intravascular or natural body cavity interventions

  • Sheath tube reinforcement layers

Some specific applications include:

  • Intracranial neuro-micro catheters

  • Intermediate pathway catheters

  • Angiography catheters

  • Guide catheters

  • Disposable endoscope catheters

Exceptional Performance and Flexibility

The machines offer the ability to perform segmental braiding of different densities, which ensures ideal performance in terms of:

  • Pushability

  • Torque Control

  • Flexibility

The Vertical Catheter Braiding Machine Series can accommodate the braiding work of catheters or sales tubes from 1.5F to 27F. If there is a need for other sizes of braiding work, customization options are available, providing an added level of flexibility.

Equipment Function

  • Multi-Stage Braiding: Can achieve 10 stages, each with individually adjustable process parameters

  • Access Management: Operator or administrator, with administrators having the permission to modify process parameters

  • Recipe Storage: Can store 100 process parameters for easy recall

Equipment Noise and Power

  • Operating Noise: Equipped with an overall noise protection cover, the maximum operating noise does not exceed 80 decibels

  • Power Supply: Single-phase 220V (±10%), 50HZ

  • Rated Power: 1.55KW, purely electric

Equipment Parameters

  • Dial Speed: 0-300 revolutions / minute

  • Spindle Speed: 0-75 revolutions / minute

  • Traction Method: Roll simple traction

  • Unwinding Method: Open loop hysteresis tension unwinding

  • Winding Method: Open loop servo tension winding

  • Yarn Tube Size: 40mm 30mm 26mm

  • Winding/Unwinding Disc Size: 300mm 208mm 90mm

nine medical

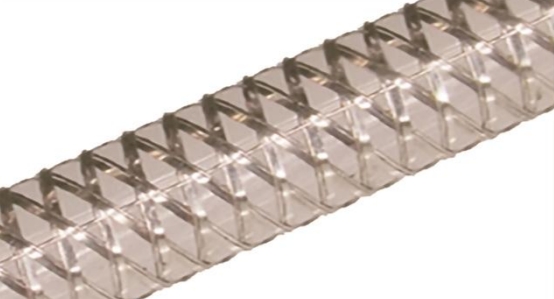

braided catheter Sample detail
