Stent Cardiac Occluder Braiding Machines

Stent Cardiac Occluder Braiding Machines
nine medical

Stent Cardiac Occluder Braiding Machines Series Overview

The Horizontal Occluder Braiding Machine Series is primarily designed for the medical industry. The machine is composed of the following components:

  • Braiding Host

  • Traction Mechanism

  • Lubrication System

  • Electrical Control System

  • Microscopic Imaging System

Customization and Key Applications

The braiding machines in this series can be customized from 16 to 288. They are primarily used for:

  • Braiding of structures and nickel alloy occluders

These machines are particularly suitable for interventional treatment of interatrial septal defects.

Basic Information

  • Product Name: KBW-90-144-1

  • Dimensions: Mainframe 1700*2400*2934 (2644)mm (Length*Width*Height), Traction 1650*700*1183mm (Length*Width*Height)

  • Equipment Weight: Mainframe 1600KG, Traction 350KG

  • Power Supply: Single phase 220V (±10%), 50HZ

  • Rated Power: 4.15KW, purely electric

Technical Parameters

  • Braiding Materials: Stainless steel wire, nickel-titanium wire, fiber wire, etc.

  • Material Range: Round wire 0.01-0.2mm, flat wire 0.01*0.01-0.01*0.85mm

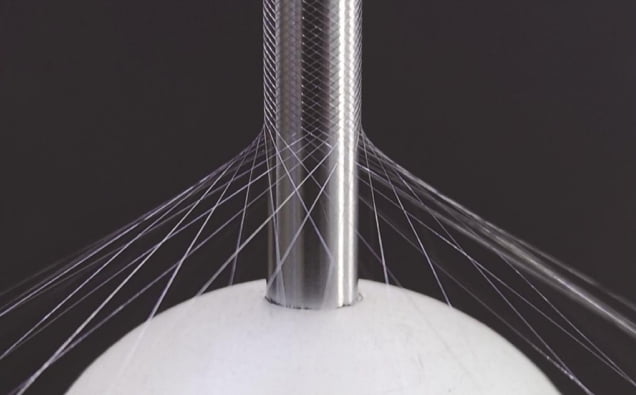

  • Braiding Outer Diameter: Covering 5.0-50.0mm (core rod, catheter wrap braiding)

  • Braiding Density: 0-300PPI adjustable

  • Braiding Structure: 1 under 1 (machine number/2), 1 under 2, 2 under 2

Equipment Feature Introduction

  • Multi-segment Braiding: Capable of 10 segments, each segment's process parameters can be set individually, can achieve gradient and abrupt mutation braiding

  • Permission Management: Operator or administrator, the administrator has the authority to modify process parameters

  • Recipe Storage: Can store 100 process parameters for convenient recall

  • Operating Noise: Equipped with an overall soundproofing shield, the maximum operating noise does not exceed 80 decibels

Device Parameter Introduction

  • Dial Speed: 0-220 rotation/min

  • Spindle Rod Speed: 0-6 rotation/min

  • Traction Method: Module traction

  • Yarn Tube Size: Diameter 40mm* 30mm*26mm

nine medical

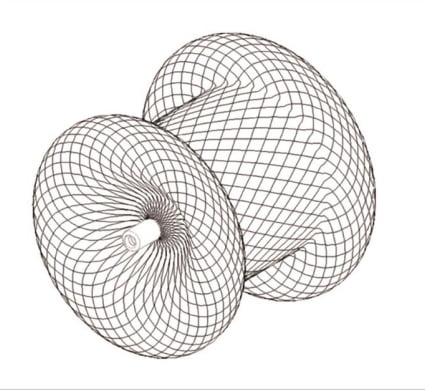

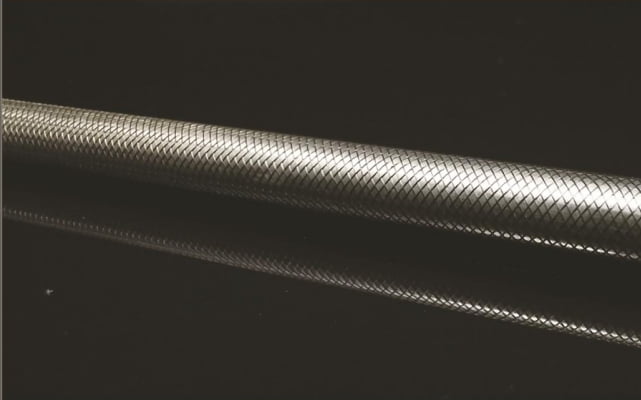

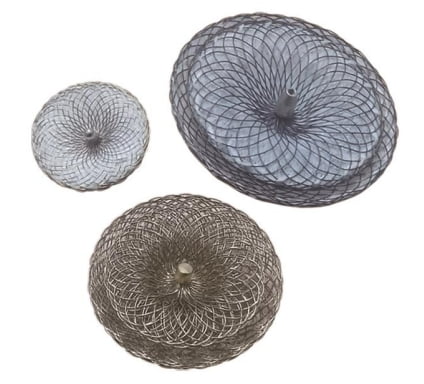

Stent Cardiac Occluder Sample detail
