Horizontal Catheter Braiding Machine Series Overview

The Horizontal Catheter Braiding Machine Series is primarily designed for the medical industry. The machine is composed of the following components:

  • Braiding Host

  • Traction Mechanism

  • Lubrication System

  • Electrical Control System

  • Microscopic Imaging System

The entire machine body is driven by a servo motor and features a human-machine interaction interface.

Key Applications

The braiding machines in this series are utilized for a wide range of applications, including:

  • Braiding for various types of intravascular or natural body cavity interventions

  • Strengthening layers for catheters or sales tubes

Some specific applications include:

  • Intracranial neuro-micro catheters

  • Intermediate pathway catheters

  • Angiography catheters

  • Guide catheters

  • Disposable endoscope catheters

Exceptional Performance and Flexibility

The machines offer the ability to perform segmental braiding of different densities, which ensures ideal performance in terms of:

  • Pushability

  • Torque Control

  • Distal Flexibility

The Horizontal Catheter Braiding Machine Series can accommodate the braiding work of catheters or sales tubes from 1.5F to 27F. If there is a need for other sizes of braiding work, customization options are available, providing an added level of flexibility.

Basic Information

  • Product Name: KBW-90-16-1

  • Dimensions: 1490mm610mm1580mm (LengthWidthHeight), excluding the collection/distribution system/tray (final installation dimensions prevail)

  • Equipment Weight: 450KG

  • Power Supply: Single phase 220V (±10%), 50HZ

  • Rated Power: 2.75KW, purely electric

Technical Parameters

  • Braiding Materials: Stainless steel wire, nickel-titanium wire, fiber wire, etc.

  • Material Range: Round wire 0.01-0.2mm, flat wire 0.010.01-0.010.85mm

  • Braiding Outer Diameter: Covering 0.5-12.0mm (core rod, catheter wrap braiding)

  • Braiding Density: 0-300PPI adjustable

  • Braiding Structure: 1 under 1 (machine spindle number/2), 1 under 2, 2 under 2

Equipment Feature Introduction

  • Multi-segment Braiding: Capable of 10 segments, each segment's process parameters can be set individually, can achieve gradient, sudden change braiding

  • Permission Management: Operator or administrator, the administrator has the authority to modify process parameters

  • Recipe Storage: Can store 100 process parameters for convenient recall

  • Operating Noise: Equipped with an overall soundproofing shield, the maximum operating noise does not exceed 80 decibels

Device Parameter Introduction

  • Dial Speed: 0-300 rotation/min

  • Decorative Rod Speed: 0-75 rotation/min

  • Traction Method: Track traction

  • Unwinding Method: Open-loop hysteresis tension unwinding

  • Winding Method: Open-loop servo tension winding

  • Yarn Tube Size: Diameter 40mm* 30mm*26mm

  • Winding and Unwinding Reel Size: Medium 300mm* 208mm*90mm

nine medical

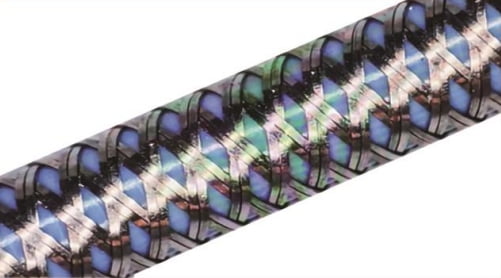

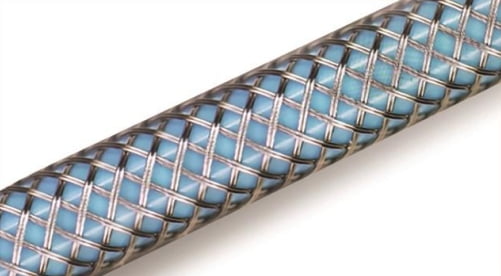

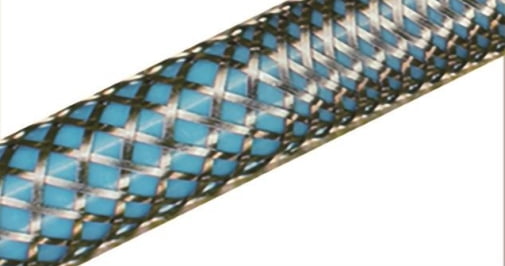

braided catheter Sample detail

Return to Medical Braiding Solutions
